Overview

iOS 10 has introduced rich push notifications, which provides the capability to add image, video, audio, or GIF attachments to your push notifications. These are great for short interactions that do not require the full app experience, and represent the growing importance of notifications to an app's user experience.

Rich push notifications are enabled via Notification Service extension and Notification Content extension. These are separate and distinct binary embedded in your app bundle. Prior to displaying a new push notification, the system will call your notification service extension to modify the payload as well as add media attachments to be displayed. Notification content extension is used to display a custom interface for your app’s notifications

Enable Rich Push Notifications

To enable rich push notifications:

1. Enable push notifications for your app.
2. Create a notification service extension in your project, in Xcode, select File > New > Target.
3. Select the Notification Service Extension template.

4. Install CTNotificationService in your Notification Service Extension. You can install with via CocoaPods(recommended), Carthage and manually.

Your Podfile should look like this:

source 'https://github.com/CocoaPods/Specs.git'
platform :ios, '10.0'

use_frameworks!

target 'YOUR_NOTIFICATION_SERVICE_TARGET_NAME' do
    pod 'CTNotificationService'
end

Then run pod install

Configure your Notification Service Extension to use the CTNotificationServiceExtension class

By default, CTNotificatonServiceExtension will look for the push payload, which will have a default value representing the URL to your media file and a value representing the type of media (image, video, audio, or gif).

If you are happy with the default key names, you can simply insert CTNotificationServiceExtension in place of your extension class name as the value for the NSExtension -> NSExtensionPrincipalClass entry in your Notification Service Extension target Info.plist.

Alternatively, you can leave the NSExtensionPrincipalClass entry unchanged and instead have your NotificationService class extend the CTNotificationServiceExtension class. You can then also override the defaults to your chosen key names if you wish. In that case, only override didReceive request: contentHandler: as shown in the example.

If you plan on downloading non-SSL urls please be sure to enable App Transport Security Settings -> Allow Arbitrary Loads -> true in your plist.

Configure your APNS payload

Then, when sending notifications via APNS:

🚧

Required Key

Include the mutable-content flag in your payload aps entry (this key must be present in the aps payload or the system will not call your app extension)

Add your custom key-value pairs to the payload outside of the aps entry.

{
    "aps": {
        "alert": {
            "body": "test message",
            "title": "test title"
        },
        "mutable-content": 1
    },
    "customKey1": "value1",
    "customKey2": "value2"
    ...
}

Your application is now configured to show push notifications with single media. To see Image captions, sub-captions and carousel media, you need to add CTNotificationContent in your Notification Content Extension. You can install with via CocoaPods(recommended), Carthage and manually.

Your Podfile should look like this:

source 'https://github.com/CocoaPods/Specs.git'
platform :ios, '10.0'

use_frameworks!

target 'YOUR_NOTIFICATION_CONTENT_TARGET_NAME' do
    pod 'CTNotificationContent'
end

Then run pod install

5. Create a Notification Content Extension in your project. To do that in your Xcode project, select File -> New -> Target and choose the Notification Content Extension template.

Configure your Notification Content Extension to use the CTNotificationViewController class

Change the superclass of your NotificationViewController to CTNotificationViewController. You should not implement any of the UNNotificationContentExtension protocol methods in your NotificationViewController class, those will be handled by CTNotificationViewController. See Objective-C example here and Swift example here.

Edit the Maininterface.storyboard in your NotificationContent target to a plain UIView.
In your AppDelegate, register the Notification category and actions:

// register category with actions
    let action1 = UNNotificationAction(identifier: "action_1", title: "Back", options: [])
    let action2 = UNNotificationAction(identifier: "action_2", title: "Next", options: [])
    let action3 = UNNotificationAction(identifier: "action_3", title: "View In App", options: [])
    let category = UNNotificationCategory(identifier: "CTNotification", actions: [action1, action2, action3], intentIdentifiers: [], options: [])
    UNUserNotificationCenter.current().setNotificationCategories([category])

UNUserNotificationCenter *center = [UNUserNotificationCenter currentNotificationCenter];
    UNNotificationAction *action1 = [UNNotificationAction actionWithIdentifier:@"action_1" title:@"Back" options:UNNotificationActionOptionNone];
    UNNotificationAction *action2 = [UNNotificationAction actionWithIdentifier:@"action_2" title:@"Next" options:UNNotificationActionOptionNone];
    UNNotificationAction *action3 = [UNNotificationAction actionWithIdentifier:@"action_3" title:@"View In App" options:UNNotificationActionOptionNone];
    UNNotificationCategory *cat = [UNNotificationCategory categoryWithIdentifier:@"CTNotification" actions:@[action1, action2, action3] intentIdentifiers:@[] options:UNNotificationCategoryOptionNone];
    [center setNotificationCategories:[NSSet setWithObjects:cat, nil]];

Then configure your Notification Content target Info.plist to reflect the category identifier you registered: NSExtension -> NSExtensionAttributes -> UNNotificationExtensionCategory. In addition, set the UNNotificationExtensionInitialContentSizeRatio -> 0.1 and UNNotificationExtensionDefaultContentHidden -> true.

Also, If you plan on downloading non-SSL urls please be sure to enable App Transport Security Settings -> Allow Arbitrary Loads -> true in your plist. See plist example here.

Send Rich Push Notifications from dashboard

When using the CleverTap Dashboard to send rich push notifications, create a Push Notification campaign on CleverTap and follow the steps below -

1. On the "WHAT" section pass the desired required values in the "title" and "message" fields (NOTE: These are iOS alert title and body).

2. Click on "Advanced" and then click on "Rich Media" and select Single or Carousel template.

3. Add your custom key-value pair(s). For adding custom key-value pair, add the template Keys individually or into one JSON object and use the pt_json key to fill in the values. Refer to this page for more template keys.

When using the CleverTap Server API to send push: include "mutable-content": "true" in the platform_specific: iOS section of the request payload. Schedule the push notification.

Rich Push Templates supported by CleverTap:

Rich Media

1. Single Media
   Single media is for basic view with single image.

2. Content Slider
   Content Slider is for image slideshow view where user can add multiple images with different captions, sub-captions, and actions.

Custom key-value pair

1. Basic Template
   Basic Template is the basic push notification received on apps where user can also update text colour, background colour.

2. Auto Carousel Template
   Auto carousel is an automatic revolving carousel push notification where user can also update text colour, background colour.

3. Manual Carousel Template
   This is the manual version of the carousel. The user can navigate to the next/previous image by clicking on the Next/Back buttons.

4. Timer Template
   This template features a live countdown timer. You can even choose to show different title, message, and background image after the timer expires.

📘

Note

If any image can't be downloaded, the template falls back to basic template with caption and sub caption only.

Support for HTML Tags in Rich Push Notification Titles and Messages

Starting with v0.3.0, CTNotificationContent supports bold, italic, underline, and strikethrough HTML tags in title and message for rich push notifications. This allows you to format text and add visual emphasis to your rich push notifications.

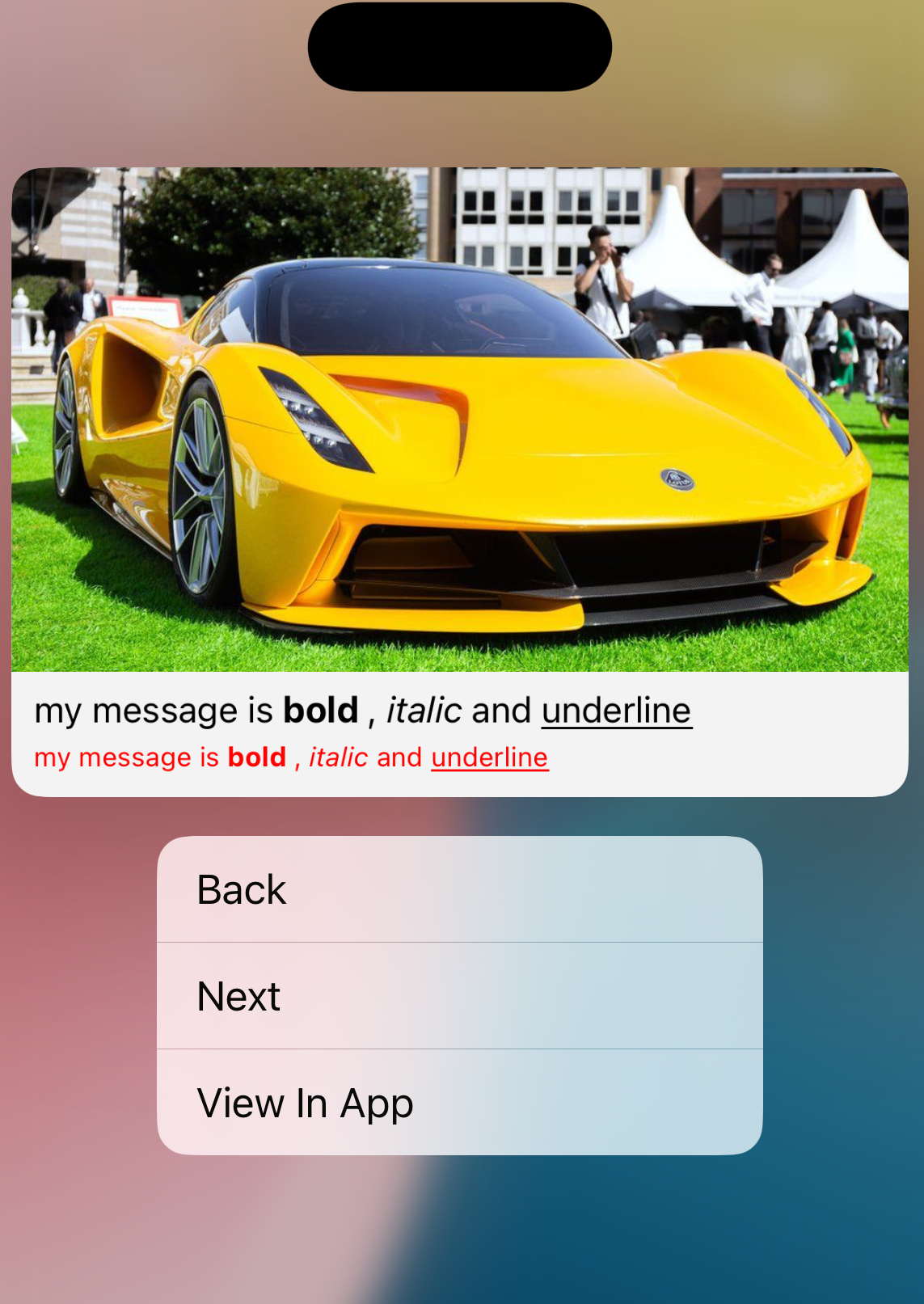

Following is a sample APNs payload using the pt_msg key with HTML tags. The message supports styling for bold, italic, underline, and font color.

{
    "Simulator Target Bundle": "com.clevertap.static",
    "W$dt": "APPLE",
    "W$id": "0_0",
    "W$pivot": "wzrk_default",
    "W$rnv" : 0,
    "aps":  {
        "alert" :         {
            "body" : "my message",
            "title" : "my title",
        },
        "badge":42,
        "sound":"default",
        "category":"CTNotification",
        "mutable-content": 1
    },
    "pt_id" : "pt_basic",
    "pt_json" : "{\"pt_title\":\"my message is <b> bold </b>, <i> italic </i> and <u> underline </u>\",\"pt_dl1\":\"https://www.google.com\",\"pt_big_img\":\"https://ichef.bbci.co.uk/news/976/cpsprodpb/C448/production/_117684205_lotus.jpg\",\"pt_bg\":\"#F3F3F3\",\"pt_msg_clr\":\"#FF0000\"}",
    "wzrk_acct_id" : "test-account-id"
}

Examples

Below are some project examples:

• Swift project
• Objective-C project
